Home Theater Setup Guide

A good home theater is a system, not a pile of gear. The screen, the seats, the speakers, and the room itself all have to agree with each other, and most of the decisions that matter are made before anything is plugged in. This guide walks through the whole process in the order that avoids expensive do-overs.

Choosing the room

The room sets the ceiling on everything else. You can put excellent speakers in a bad room and get mediocre sound; you cannot do the reverse.

What to look for:

• Rectangular, not square. A square room (or one where length is a clean multiple of width or height) stacks its resonances at the same frequencies, which produces boomy, uneven bass. Ratios in the neighborhood of 1 : 1.4 : 1.9 (height : width : length) spread resonances out more evenly. Run your dimensions through the room modes calculator to see where the problem frequencies fall.
• Light control. A room with no windows, or windows you can fully black out, is worth more than an extra thousand dollars of equipment. This matters far more for projectors than for TVs.
• Enough depth. For a single row of seats and a properly sized screen, you want at least 12 to 14 feet of length. Two rows need 18 feet or more and a ceiling of 9 feet or better for a riser.

Screen: TV or projector

The honest split is this: TVs win on brightness, contrast in a lit room, and convenience. Projectors win on sheer size per dollar and on the immersive, cinema-like feel of a 100-inch or larger image in a dark room.

When a TV is the right call

• The room has ambient light you cannot fully control.
• You watch a lot of sports, daytime TV, or HDR content that benefits from high peak brightness.
• Your seating distance supports a 65 to 85 inch screen at a satisfying viewing angle (more on that below).

When a projector is the right call

• You can make the room genuinely dark.
• You want a 100 to 150 inch image and are comfortable with a separate screen and a ceiling mount.

Use the projector throw calculator to confirm your chosen projector can produce your target image size from where you can physically mount it. Throw ratio (distance divided by image width) is the number to check. A ratio of 1.5 means a 100-inch-wide image needs the lens 150 inches back.

Sizing by viewing distance

Two standards are worth knowing:

For a 16:9 screen, a 30° angle at 10 feet of seating distance works out to roughly a 75-inch diagonal. At 36°, the same seat wants about 90 inches. Most people who measure their actual room find they can go larger than they assumed. The TV size calculator and viewing distance calculator do the trigonometry for you and account for 4K resolution, where you can sit closer without seeing pixel structure.

Mount the screen so its center sits at seated eye height and ideally not above it; typical seated eye height is 38 to 44 inches from the floor. The TV mount height calculator gives you a target for your seat height and distance.

Seating placement

Where you sit determines how the bass sounds more than any subwoofer purchase will.

The 38 percent guideline

For a single row, a well-known starting point is to place the main listening position about 38 percent of the room length from either the front or rear wall. This spot tends to avoid the worst peaks and nulls of the room's length modes. Refine it by ear from there.

Avoid the exact center

Do not put the seats at 50 percent of the room length. The exact center is a null for the first-order length mode (the room's fundamental resonance) and a peak for the second. Bass at the center seat will sound thin at some frequencies and bloated at others, and no equalizer can fix a null.

Distance from the rear wall

Seats pushed against the rear wall get a large bass boost from boundary reinforcement and suffer strong reflections from the wall directly behind the head. Leave at least 3 feet, or as far as the room allows, between the back of the seats and the rear wall. If a second row must be near the rear wall, put thick absorption on that wall and a riser of 12 to 14 inches under the row.

Speaker layouts and what each channel does

Speaker layouts are written as main channels . subwoofers . height channels. Here is what each configuration adds.

A few practical points:

• The center channel carries most of the dialogue. Buy it from the same product line as the left and right so voices do not change timbre as they pan across the screen.
• A 5.1.2 usually beats a 7.1 in a room that lacks space behind the seats. Rear surrounds crammed 2 feet behind your head sound worse than none at all.

For exact angles, distances, and toe-in, see the speaker placement guide and the speaker placement calculator. For the height layer, see the Dolby Atmos setup guide.

Subwoofer basics

The subwoofer reproduces everything below the crossover point (usually 80 Hz) from every channel, plus the dedicated LFE track, which is mixed to play up to 10 dB hotter than the main channels. It is doing more work than any other speaker in the system.

• Size matters. Moving air at 20 to 30 Hz requires displacement. A 12-inch driver in a properly sized enclosure is a reasonable minimum for a medium room.
• Placement matters more than the sub itself. Corners give the most output; mid-walls often give the flattest response.
• Two subs beat one. Two subwoofers, placed intelligently, smooth out the seat-to-seat bass response far more than one bigger sub. This is the highest-value upgrade in most systems after the center channel.

The subwoofer placement guide covers the crawl method, dual-sub layouts, and phase setup in detail.

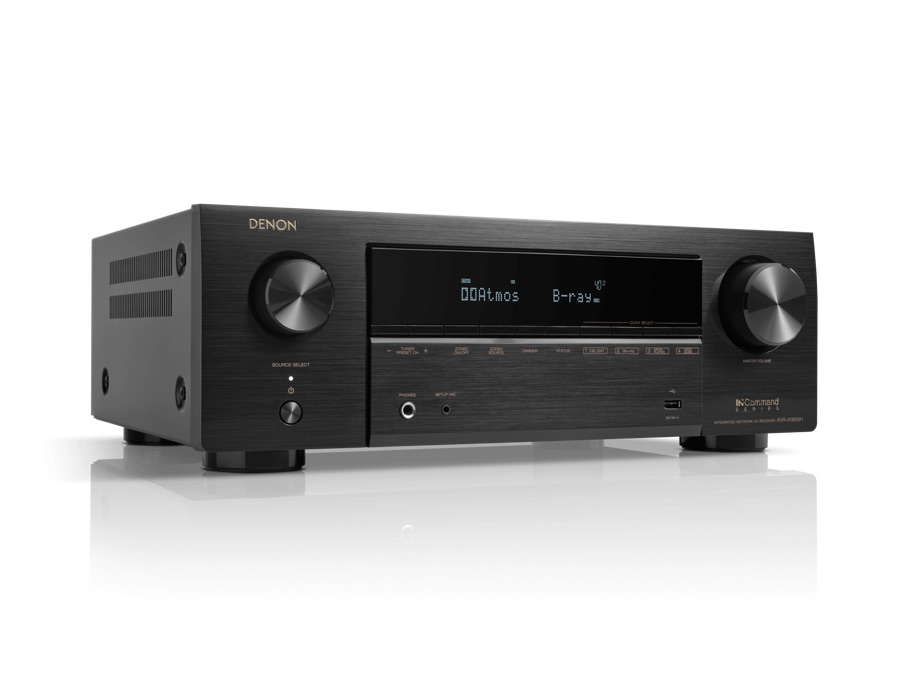

The AV receiver

The receiver is the hub. It switches video, decodes audio formats, amplifies the speakers, runs room correction, and manages crossovers and delays. When choosing one, work through these questions:

1. How many channels do you need amplified? A 7.1.4 system needs 11 amplified channels. Many receivers process 11 channels but only amplify 7 or 9, and you add a separate power amp via pre-outs for the rest.
2. Does it have pre-outs? Pre-outs let you add external amplification later. This is the feature that keeps a receiver relevant as your system grows.
3. HDMI inputs and spec. You want enough HDMI 2.1 inputs (with 4K at 120 Hz and eARC) for every source you own plus one spare.
4. Room correction. All mainstream receivers include some form of automatic room correction. The better implementations measure at multiple positions and correct across the full band with adjustable target curves.
5. Power, realistically. Ratings quoted with two channels driven are optimistic. Speakers with sensitivity above 88 dB are easy to drive; low-sensitivity or 4-ohm speakers may want a separate amplifier.

Cabling

HDMI

For 4K at 120 Hz, variable refresh rate, and full HDR, you need cables certified for 48 Gbps (labeled Ultra High Speed). Runs under about 10 feet are reliable with certified passive copper; some certified cables manage 16 feet. Beyond about 25 feet, use an active optical HDMI cable; these are directional, so check the markings. Run every source into the receiver, then one cable to the display with eARC enabled so audio from the TV's own apps comes back in full-bitrate formats.

Speaker wire

For most home runs under 50 feet, 16 AWG copper is adequate for 8-ohm speakers and 14 AWG is a safe default that covers 4-ohm loads and longer runs. The goal is to keep the wire's resistance below about 5 percent of the speaker's impedance. Use the speaker wire gauge calculator for your actual distances.

Use in-wall rated (CL2 or CL3) wire for any run inside walls or ceilings, and keep polarity consistent: the marked conductor goes to the red terminal at both ends. The subwoofer needs only a single shielded RCA cable from the receiver's sub pre-out.

If walls are open, run conduit or at least a pull string from the equipment location to the display, each speaker position, and two candidate subwoofer locations. Future-proofing a cable run costs a few dollars; opening drywall later costs a weekend.

Acoustic basics

A room with bare walls, hard floors, and big windows will smear dialogue and make everything sound harsh, no matter what speakers you own. Three interventions handle most of it.

First reflections

Sound from the front speakers bounces off the side walls, ceiling, and floor and arrives at your ears a few milliseconds after the direct sound. These early reflections blur imaging and make dialogue less intelligible. Find the reflection points with the mirror trick: sit in the listening position, have someone slide a mirror along the side wall, and mark every spot where you can see a front speaker in the mirror. Put a 2-inch or thicker absorption panel at each mark. Do the same for the ceiling if practical.

Bass traps

Low frequencies pile up in corners. Thick absorbers (4 inches or more, or a full corner-filling chunk) placed in the vertical corners behind the front speakers, and ideally in all four corners, tame the boom and tighten the bass. This is the single most effective treatment for the majority of rooms.

Rugs and soft furniture

A thick rug between the speakers and the seats kills the floor reflection. Upholstered seating, curtains, and bookshelves all add absorption and scattering. A room that is comfortable to talk in is usually a room that is on its way to sounding good.

A reasonable target is absorption on 20 to 30 percent of wall surface, concentrated at reflection points and corners. The acoustic treatment basics guide goes into DIY panels, material choices, and what to avoid.

Lighting and light control

Contrast is the foundation of picture quality, and stray light destroys it. Every lit surface in a projector room bounces light back onto the screen and lifts the black level.

• Block windows completely. Blackout shades with side channels, or blackout curtains that overlap the frame by several inches.
• Darken the surfaces near the screen. Dark, matte paint on the front wall and ceiling near the screen makes a visible difference for projectors. Deep navy, charcoal, or dark brown work better than pure black, which reads as gloomy in a lived-in room.
• Bias lighting for TVs. A dim, neutral-white (around 6500 K) light strip behind a TV reduces eye strain and improves perceived contrast.
• Dimmers on everything, and tape over bright LED indicators on equipment.

Calibration

Once everything is placed and wired, the receiver needs to know about the room. Run the automatic room correction with the microphone at ear height in the main seat and at several positions around it, as the software directs. Then check its work.

Speaker distances

The receiver delays each channel so sound from every speaker arrives at the same time. Verify auto-setup's numbers with a tape measure from each tweeter to your ear position. Subwoofer distance is often reported longer than the physical distance because of processing delay inside the sub; that is expected, leave it.

Speaker levels

Each channel should produce the same sound pressure at the seat. With an SPL meter (a phone app is acceptable for relative levels, not absolute) set to C-weighting and slow response, play the receiver's internal test tones and trim each channel to 75 dB. The subwoofer is commonly set 2 to 5 dB hotter than the rest for movies, because many people prefer it and because auto-setup often underestimates it.

Crossover

Set every speaker to Small and the crossover to 80 Hz. This is the THX standard and it works well for nearly all speakers, including large towers. Sending bass below 80 Hz to the subwoofer puts the load on the speaker designed for it, frees the receiver's amplifiers, and lets you position the sub where the bass is smoothest rather than where the towers have to be. Small satellite speakers may want 100 or 120 Hz; set the crossover roughly an octave above the rated low-frequency limit if in doubt.

After calibration, "0" on the volume dial corresponds to Dolby reference level (85 dB per channel, LFE 10 dB hotter). Most people watch 10 to 15 dB below that.

Step-by-step build order

Following this sequence prevents the two most common expensive mistakes: buying speakers that do not fit the room, and running cables to the wrong places.

1. Measure the room. Length, width, height, and the location of doors, windows, and outlets. Check the dimensions in the room modes calculator.
2. Decide screen position and size. Short wall. Confirm the size against your seating distance with the viewing distance calculator. If projecting, confirm throw with the projector throw calculator.
3. Place the seats on paper. Around 38 percent of room length, away from the rear wall, centered on the screen.
4. Choose the speaker layout based on the space around the seats. Mark speaker positions using the speaker placement calculator.
5. Pick two subwoofer candidate locations (front corners, or opposing mid-walls) and plan to test both.
6. Choose the receiver by channel count, pre-outs, HDMI inputs, and room correction.
7. Run cables before any drywall or paint. HDMI to the display, speaker wire to every position including heights, RCA to both sub locations, power where needed. Add conduit.
8. Paint and light control. Dark matte surfaces near the screen, blackout for windows, dimmers.
9. Install the screen and speakers. Tweeters at seated ear height, heights at the correct angles.
10. Place the subwoofer using the crawl method. Details in the subwoofer placement guide.
11. Add acoustic treatment. Rug, first reflection panels, corner bass traps.
12. Connect everything and run room correction. Then verify distances, set levels to 75 dB, set crossovers to 80 Hz.
13. Watch something you know well and listen for dialogue clarity, bass evenness across seats, and clean panning.

Common mistakes

• Buying speakers before measuring the room. Speakers that need 3 feet of breathing room from walls will not work in a room that can only give them 8 inches.
• Sitting against the back wall or at dead center. Boomy bass in the first case, cancelled bass in the second.
• Mounting the TV too high. Center of screen at eye level, or within about 10 to 15 degrees above it.
• Undersizing the screen. People who measure for 30 degrees and buy for 36 rarely regret it.
• Setting speakers to Large. Almost always sounds worse than Small at 80 Hz with a good sub.
• One subwoofer, wherever it fit. Two subs, placed with intent, transform the bass.
• Skipping the rug and reflection panels. The cheapest upgrade with the most audible effect on dialogue.
• Trusting auto-setup blindly. Verify distances, levels, and crossovers. The software gets you close, not done.
• No spare HDMI input, no pre-outs, no conduit. All three cost little now and a lot later.

Get the room, the seats, and the screen right, and everything after that is refinement.
