How to Treat a Room for Better Sound

Every sound you hear in a home theater has been shaped by the room before it reaches your ears. Most of what arrives is reflected, not direct, and an untreated room adds smear, ringing, and bass lumps that no speaker upgrade can remove. Acoustic treatment is how you make the room stop fighting the system.

Why the room matters more than the gear

At the listening position in a typical living room, well over half of the sound energy arriving at your ears has bounced off at least one surface. Those reflections arrive late, from the wrong directions, and with the room's own tonal signature stamped on them. The audible results are dialogue that is hard to follow, imaging that wanders, harshness at higher volumes, and boomy bass with some notes missing entirely.

Swapping speakers changes the direct sound, which is the minority of what you hear. Treating the room changes the majority. The same speakers that sound muddy in a bare room can sound precise after a rug, four panels, and two bass traps.

First reflections and the mirror trick

The reflections that do the most damage are the first ones: sound from a front speaker hitting the nearest side wall, ceiling, or floor and reaching your ears a few milliseconds behind the direct sound. Because they arrive so soon, your hearing merges them with the direct sound, and the result is smeared timing and a shifted image.

Finding these points does not require measurement. Use a mirror.

1. Sit in the main listening position.
2. Have someone hold a small mirror flat against the left side wall and slide it along the wall at roughly tweeter height.
3. Every position where you can see the left front speaker, the center, or the right front speaker in the mirror is a first reflection point. Mark it with tape.
4. Repeat on the right wall, and on the ceiling if you can reach it.
5. The floor reflection point is roughly midway between you and the speakers. A thick rug covers it.

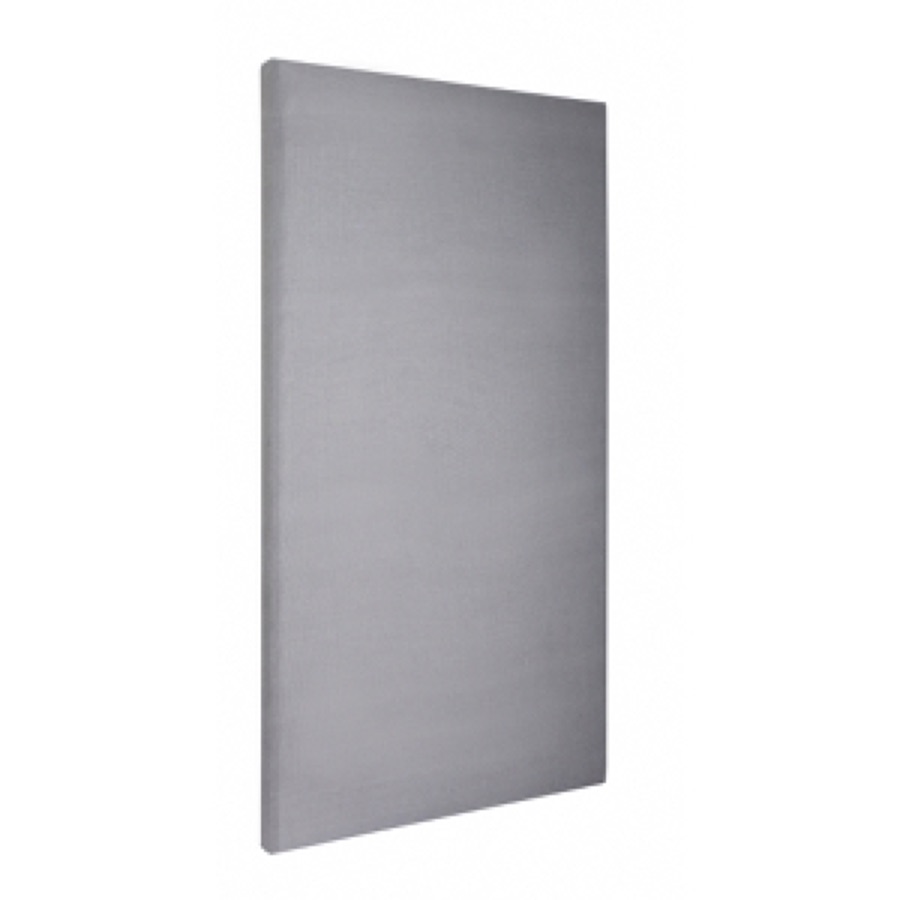

You will usually find two or three points per side wall, spread over 2 to 4 feet of wall, and a similar patch on the ceiling. Cover each cluster with a 2-inch or thicker absorption panel, at least 2 by 4 feet.

Absorption vs. diffusion

Treatment does one of two things to a reflection: absorb it (turn it into heat) or diffuse it (scatter it into many weaker reflections going in different directions).

Absorption

Porous material (mineral wool, fiberglass, dense foam) converts sound energy into heat as air moves through it. Effective absorption requires thickness relative to wavelength: a 2-inch panel absorbs well above about 500 Hz, a 4-inch panel reaches down to roughly 250 Hz, and absorption below 100 Hz needs a purpose-built bass trap. Use it at first reflection points, on the rear wall if the seats are close to it, and in corners.

Diffusion

A diffuser is a surface with varied depths (a quadratic residue diffuser, or simply an irregular bookshelf) that breaks a reflection into a spread of small reflections. It keeps the energy in the room but removes the sense of a distinct echo, making the room sound bigger and more natural without deadening it. Use it on the rear wall when the seats are 5 feet or more from it; closer than that, diffusers sound odd and absorption is the better choice.

The goal is controlled reflections: absorb the early ones that cause damage, diffuse or leave alone the later ones that give the room life. A room treated with absorption only sounds dead and oppressive.

Bass traps in corners

Low frequencies pile up where walls meet. The pressure at a room's corners is highest for every room mode, which makes corners the single most efficient place to absorb bass. A bass trap is just thick absorption placed there.

• Vertical corners behind the front speakers are the priority, floor to ceiling if possible. Then the rear corners.
• Thickness matters. A 4-inch panel straddling the corner leaves an air triangle behind it, which effectively increases its depth. Triangular traps that fill the corner, 12 inches or more on each face, absorb further down.
• Do not expect miracles below 60 Hz. Porous traps get less effective as frequency drops. For deep bass problems, subwoofer placement and a second subwoofer do more than any amount of fiberglass. See the subwoofer placement guide.

RT60 in plain language

RT60 is the time it takes for sound in a room to decay by 60 dB after the source stops. A concert hall might be 2 seconds; a bare living room with hard floors is often 0.6 to 0.8 seconds; a well-treated home theater lands around 0.3 to 0.4 seconds in the midrange. Below 0.2 seconds, a room starts to sound dead.

You do not need to measure RT60 to treat a room; the mirror trick and the coverage guideline below will land you in the right range. If you do measure, aim for 0.3 to 0.4 seconds, roughly even from 200 Hz up.

How much treatment

A useful starting target is absorption covering 20 to 30 percent of the total wall surface area, with the placement concentrated where it matters:

Panels should be 2 inches thick at a minimum; 4 inches is better anywhere bass control matters. Stop and listen after each stage. Many rooms sound right after the first four items, and adding more only makes them dull.

Furniture and rugs as treatment

The room's contents count. Before buying panels, take stock of what is already doing acoustic work:

• A thick rug with a pad on a hard floor is the single most cost-effective treatment in most rooms. It handles the floor reflection and reduces overall brightness.
• Upholstered seating absorbs midrange and treble. A big fabric sectional is a large absorber.
• Bookshelves full of books at irregular depths are effective diffusers, especially on a rear wall.
• Heavy curtains over windows absorb treble and, when drawn, help the projector as much as the speakers.

A room that is comfortable to hold a conversation in is halfway to being a good theater room. Hard floors, bare walls, leather furniture, and large windows are the opposite.

Room modes and why small rooms have bass problems

Between any two parallel surfaces, sound at certain wavelengths reinforces itself into a standing wave, with pressure peaks at the walls and nulls at fixed points between. The lowest mode between two walls 16 feet apart is about 35 Hz; the next is 70 Hz, then 105 Hz, and so on, for length, width, and height alike.

In a large room these modes are numerous and closely spaced, and they average into smooth bass. In a small room they are few and far apart below about 200 Hz, so the bass at any position is a series of big peaks and deep nulls. This is why bass in a 12 by 15 foot room is harder to get right than in a 20 by 30 foot room, regardless of the subwoofer. Square rooms, or rooms whose dimensions are simple multiples of each other, stack modes on top of each other and make it worse.

Use the room modes calculator to see where your room's modes fall. The fixes, in order of effectiveness: move the subwoofer and seats out of the worst nulls (the subwoofer crawl does this), add a second subwoofer, add corner bass traps to reduce ringing, then use room correction to trim the remaining peaks. Treatment alone will not solve modal problems.

Building your own panels

Commercial panels are fine, but a DIY panel costs a fraction as much and performs comparably. The basic recipe:

Materials

• Absorbent core: rigid mineral wool (rockwool) or rigid fiberglass board, around 3 to 6 pounds per cubic foot. Both are standard building insulation. Rockwool is easier to handle.
• Thickness: 2 inches for reflection panels; 4 inches for bass traps and anywhere you want absorption to reach lower.
• Frame: 1 by 4 or 1 by 6 lumber, assembled into a rectangle matching the insulation size (2 by 4 feet is standard).
• Fabric: anything acoustically transparent. Hold it to your mouth and blow; if air passes freely, sound will too. Burlap, speaker grille cloth, and many polyester upholstery fabrics work. Avoid vinyl or anything backed.

Construction

1. Assemble the frame with the insulation fitting snugly inside. Wear gloves and a mask when handling the insulation.
2. Wrap the fabric around the frame like a canvas, pull it taut, and staple it to the back.
3. Mount with picture hardware or French cleats, leaving a 1- to 4-inch air gap behind the panel. The gap extends the low-frequency range noticeably.

For corner bass traps, the same panel mounted diagonally across the corner works well; stack two 4-inch panels for a deeper trap.

What not to do

• Egg crates. Egg cartons and foam shaped like them are not absorbers. They are too thin to affect anything below about 2 kHz, and they are a fire hazard.
• Thin foam everywhere. One-inch foam tiles absorb treble and nothing else. Covering a room in them produces a dull, lifeless treble with all the bass problems intact. If you use foam, use it thick (4 inches or more) and only at reflection points. Carpet on the walls has the same problem.
• Treating before placing. Put the speakers and subwoofer in their final positions first. Reflection points move when the speakers move.
• Ignoring symmetry. Treat both side walls the same. An absorber on the left with a bare wall on the right shifts the image toward the untreated side.
• Expecting panels to fix bass nulls. Nulls come from placement. Move the sub or the seat.

Start with the rug, the side wall reflection points, and the front corners. Listen, then decide whether the room needs more. Most do not, and every step is reversible.
